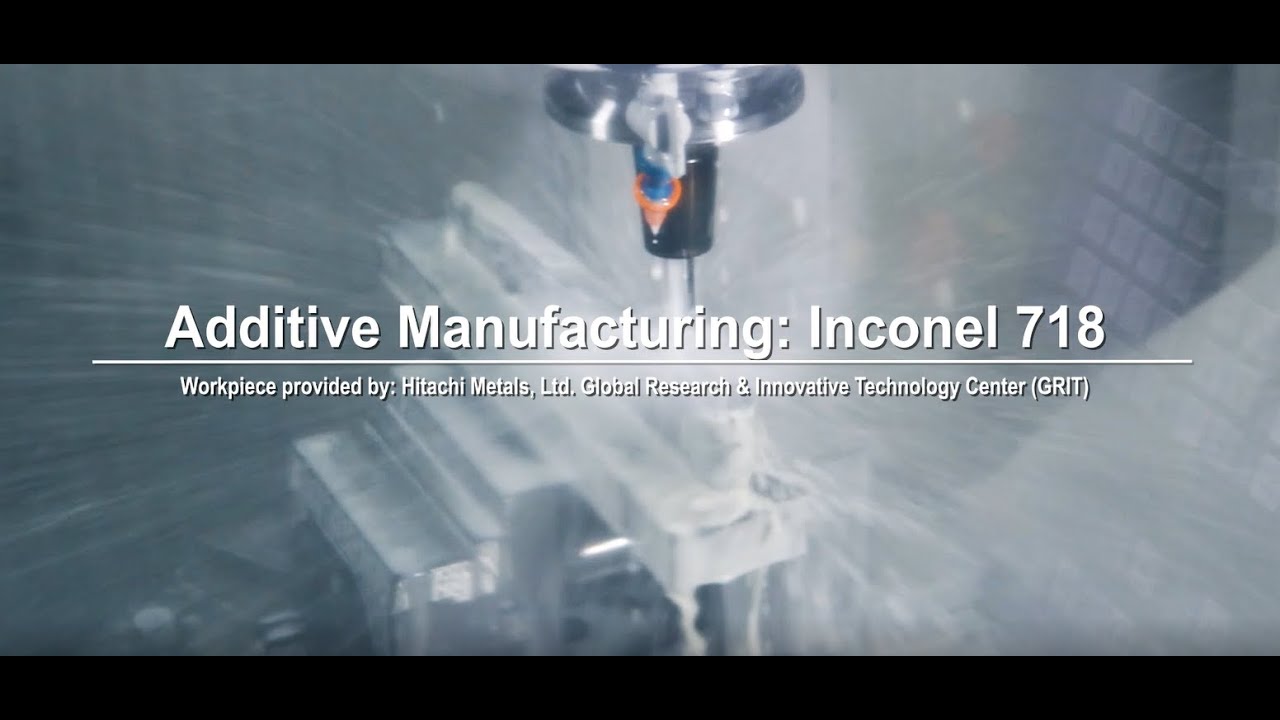

Carbide End Mills Designed for Additive Manufacturing
Stainless Steel
Hardened Steel
Heat Resistant Super Alloy
Stainless Steel
Hardened Steel
Heat Resistant Super Alloy
PDF generation may take time depending on details of the product.
| Diameter - Metric (D) | 10 |
| Corner Radius - Metric (R) | 1 |
| Length of Cut - Metric (Lc) | 20 |
| Length of Cut - Specification | REGULAR |
| Neck Diameter - Metric (d1) | 9.7 |
| Non-Taper Neck Length - Metric (L2) | 30 |
| Overall Length - Metric (L) | 80 |
| Shank Diameter - Metric (d) | 10 |
| Shank Tolerance | Shrink Fit |
| Substrate | Carbide |
| Helix Angle - Degree | 45 |
| Helix Direction | RH |
| Mill Type | Single End |
| Number of Flutes | 6 |

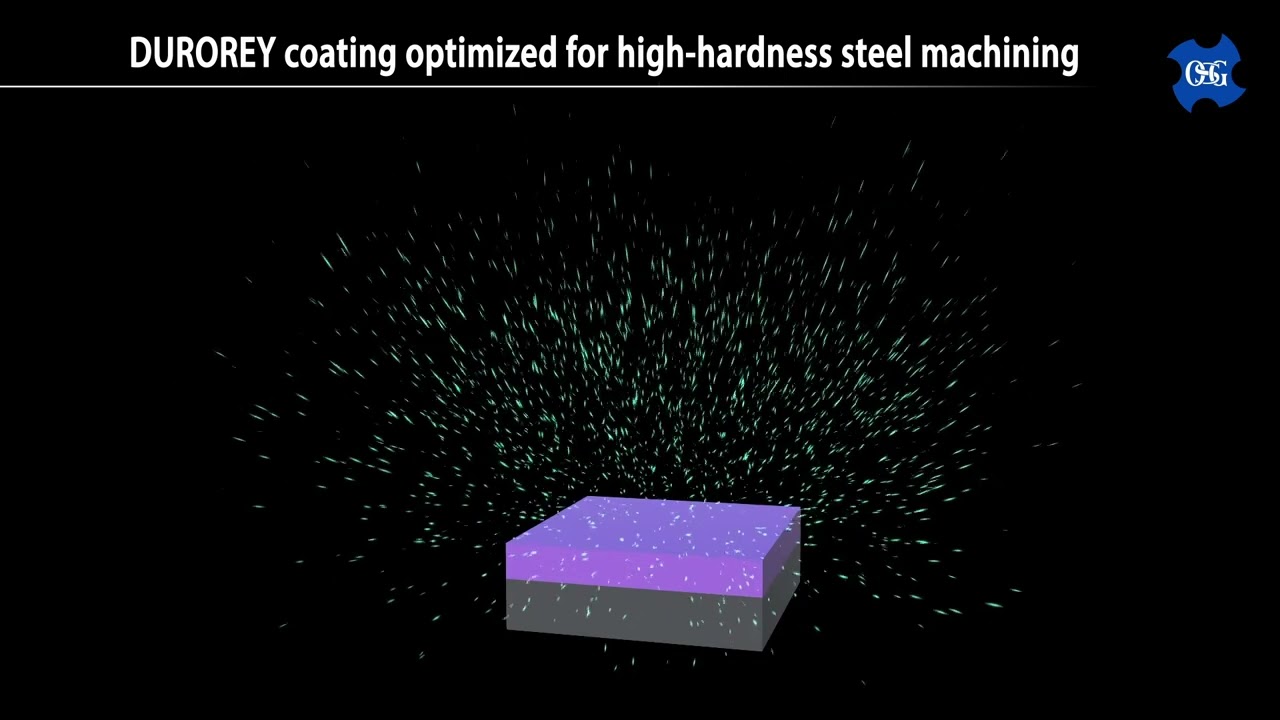

| Surface Treatment | DUROREY |
| Weldon Flat | No |
| Cutting Direction | RH |
| Cutting Type | Non-Center Cutting |
| Cutting Diameter Tolerance - Metric | +/- 0.010 |
| Coolant Thru | Yes |
| Bottom Edge Radius - Metric (R2) | 6 |
| Effective Diameter - Metric (DCF) | 5 |
| Effective Radius - Metric (rt) | 1.2 |
| End Cut Type | High Feed Radius |
| Radius Tolerance - Metric | +/- 0.030 |
| Type | 2 |
| Type (feature) | High Feed |
| View Catalog Page | Here |
| View Speed and Feed Page | Here |
| DXF Drawing | Download |
| STP Drawing | Download |
