DRILLING/INDEXABLE - DRILLING/INDEXABLE DRILL/78001

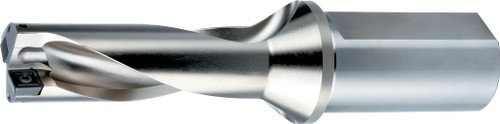

OSG PHOENIX PHP

High performance 3D indexable drill

EDP: 7800128
PHP290FS32M10-3D
Description
Indexable_-_Drill_-_PHOENIX_PHP_-_List_78001_-_Catalog
Description
PHOENIX PHP is a high performance 3XD indexable drill. It is capable efficient drilling, even in difficult applications.
Features & Benefits
Highly rigid drill body Improved durability
Point angle shape Expanded application range, including angled surfaces, cast surfaces, and stack plates
The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
Globally Stocked
ALTERNATIVE PRODUCT
VIEW PRODUCT
CONTACT US

CAN: 0 In stock

USA: 0 In stock

MOQ: 1

Preview PDF

PDF generation may take time depending on details of the product.

Diameter - Metric (D)29
Flute Length - Metric (FL)87
Overall Length - Metric (L)171
Shank Diameter - Metric (d)32
Shank Length - Metric (l2)60
Number of Flutes2
Drilling L/D Ratio (xD)3
SubstrateTOOL STEEL
Body TypeFlat Shank
Helix DirectionRH
Cutting DirectionRH
Coolant ThruYes
Applicable InsertSCMT10
Product CategoryIndexable Insert Drill
View Catalog PageHere
View Speed and Feed PageHere
DXF DrawingDownload
STP DrawingDownload
