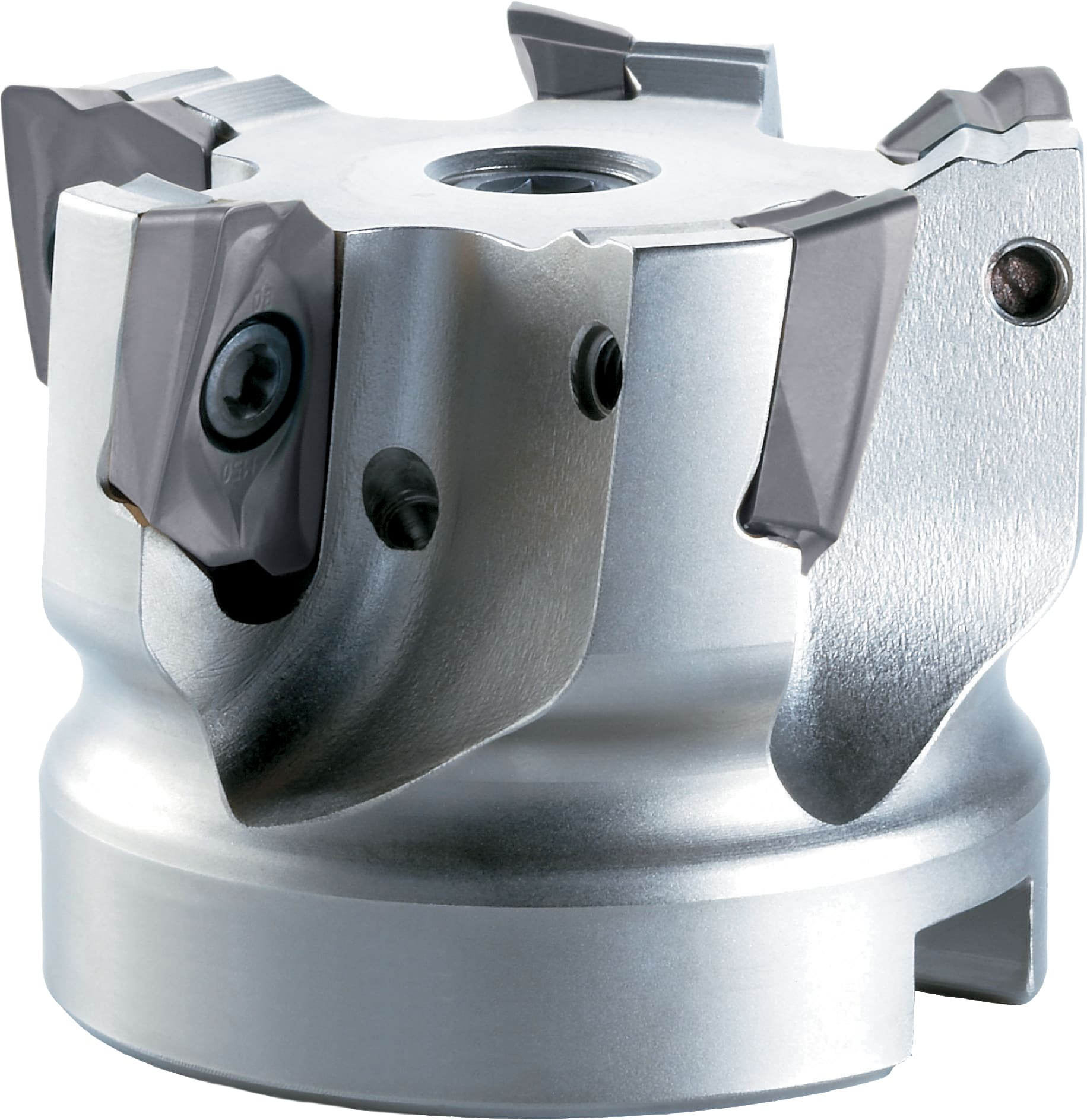

{"Images":["https://res.cloudinary.com/osg-usa-inc/image/upload/f_jpg,q_auto//Products%2FMilling%2FIndexable%2FShoulder%20Cutters%2FList%2078010/Indexable_-_Mill_-_PHOENIX_PSE_-_List_78010_-_90_Shoulder_Cutter_-_Bore_-_Catalog"],"Body Height - Metric (H)":["40","50","63"],"Bore Diameter - Metric (d3)":["16","22","27","32","25.4","31.75","38.1"],"Diameter - Metric (D)":["40","50","63","80","100","125"],"Number of Flutes":["4","5","6","7","8","10","3","11"],"Flange Diameter - Metric (D2)":["38","45","50","60","70","90"],"keyway Depth - Metric (b)":["5.6","6.3","7","8","6","10"],"Keyway Width - Metric (a)":["8.4","10.4","12.4","14.4","9.5","12.7","15.9"],"Length of Cut - Metric (Lc)":["10","14"],"View Catalog Page":"Here","View Speed and Feed Page":"Here","Cutting Direction":"RH","Feature 1":"Side cutting edge \"margin\"","Benefit 1":"Superior surface finishes in side milling applications","Substrate":"TOOL STEEL","Notes":"When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2).","Type":["1","2","3"],"Contouring":"Yes","Web Literature 1":"8002024CA-EM,415|8002024CA-EMT,195","Coolant Thru":["Yes","No"],"Face Milling":"Yes","Web Literature 2":"800217CA-V7|800358CA","Short Description":"90 Degree indexable shoulder cutter","Product Overview":"90 Degree Shoulder Cutter, Shell Type, Metric","Side Milling":"Yes","Body Type":"Bore","Feature 2":"Bottom notch","Side Milling (90° SQ)":"Yes","Slotting (SQ)":"Yes","Applicable Insert":["ZD_T11","ZDKT15"],"Benefit 4":"Complete Offering","Benefit 2":"Efficient ramping and helical milling","Feature 4":"End mill and face mill styles, Inch and Metric","Web Video 1":"https://youtu.be/EfWsxuxF9mE","Web Video 2":"https://youtu.be/EfWsxuxF9mE","Web Video 3":"https://youtu.be/EfWsxuxF9mE","Feature 3":"Insert variety","Units":"Metric","Benefit 3":"Multiple grades and chip breakers for all materials","Counterboring":"No","Drilling":"No","Helical Boring":"No","Horizontal Slope":"No","Plunging":"No","Profile Milling (Barrel)":"No","Profile Milling (Concave)":"No","Profile Milling (Convex)":"No","Ramping":"No","Side Milling (90° CR)":"No","Slotting (BN)":"No","Slotting (CR)":"No","Vertical Slope":"No","Full Description":"PHOENIX PSE is a versatile series of 90° end mills and facemills, ideal for a wide variety of rough and finish milling applications including facing, side milling, slotting, ramping and helical milling.","List Name":"PSE BORE","Designation":["PSE11R040M16-4","PSE11R050M22-5","PSE11R063M22-6","PSE11R080M27-7","PSE11R040M16-6","PSE11R050M22-7","PSE11R063M22-8","PSE11R080M27-10","PSE15R040M16-3","PSE15R050M22-3","PSE15R063M22-4","PSE15R080M27-5","PSE15R100M32-7","PSE15R040M16-4","PSE15R050M22-5","PSE15R063M22-6","PSE15R080M27-8","PSE15R100M32-10","PSE11R080M25.4-7","PSE11R080M25.4-10","PSE15R080M25.4-5","PSE15R100M31.7-7","PSE15R125M38.1-8","PSE15R080M25.4-8","PSE15R100M31.7-10","PSE15R125M38.1-11"],"Diameter-Sizes":"40mm - 125mm","Flute-Sizes":"-","Neck-Sizes":"-","Taper-Sizes":"-","Overall-Sizes":"-","Shank-Sizes":"-","Friendly Name":"78010","CategoryBrand":"OSG PHOENIX"}
