MILLING/INDEXABLE - MILLING/MILL INSERTS/78PFR

OSG PHOENIX PFR INSERTS

Indexable Corner Radius End Mills

EDP: 7820220

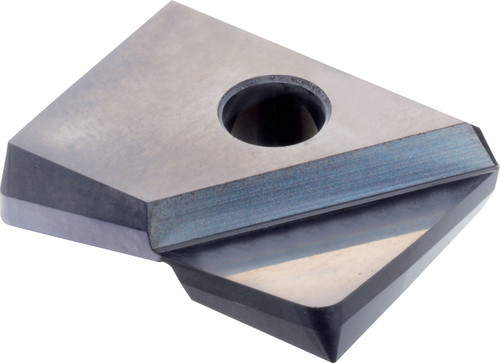

PFR200R10-ST XP3225
Description
Indexable_-_Mill_-_PHOENIX_PFR_-_List_78PFR_-_Insert_-_Diamond_Coated_-_Catalog
P

Steel

Steels : P
Good
Best
M

Stainless Steel

Stainless Steels : M
Good
Best
K

Cast Iron

Cast Iron : K
Good
Best
N

Non-Ferrous

Non-Ferrous : N
Good
Best
H

Hardened Steel

Hardened Steels : H
Good
Best
S

Heat Resistant Super Alloy

Heat Resistant Alloys : S
Good
Best
P

Steel

Steels : P
Good
Best
M

Stainless Steel

Stainless Steels : M
Good
Best
K

Cast Iron

Cast Iron : K
Good
Best
N

Non-Ferrous

Non-Ferrous : N
Good
Best
H

Hardened Steel

Hardened Steels : H
Good
Best
S

Heat Resistant Super Alloy

Heat Resistant Alloys : S
Good
Best
Description
PHOENIX PFR is a series of high precision indexable finish radius end mills for superior surface finish and tool life.
Features & Benefits
End mill style, Inch and Metric Complete Offering
Spiral cutting edge Excellent cutting edge strength and sharpness
Steel and Carbide tool shanks Reduces chatter and provides favorable milling surface when machining at short or long overhangs
Very high insert diameter (+0 / -20µm) and corner radius precision (±8µm) Superior milling surface finish
Stocked
ALTERNATIVE PRODUCT
VIEW PRODUCT
CONTACT US

CAN: 26 In stock

USA: 4 In stock

MOQ: 1

Preview PDF

PDF generation may take time depending on details of the product.

DesignationPFR200R10-ST
GradeXP3225
SpecificationMulti-Purpose
Diameter - Metric (D)20
Length of Cut - Metric (Lc)6.7
Overall Length - Metric (L)15
Thickness - Metric (T)5
Number of Cutting Edges2
UnitsMetric
Hardness (HRA)91.5
View Catalog PageHere
View Speed and Feed PageHere
NotesBest recommended when L/D ≥ 5. Best recommended for aluminum applications.
