New Products

August 2025

NEW
Advanced Performance Two-Fluted Long Neck Corner Radius End Mill for Hardened Steels
A BRAND AE-CPR2-H
Carbide, Durorey Coating, 2-Flute, Metric Sizes
A BRAND AE-CPR2-H Main Image

2-Flute Design

Low cutting resistance reduces tool deflection, ensuring a high-quality machined surface

Optimized 3D Negative Geometry

Balances sharpness and cutting edge rigidity for superior performance

Flat Cutting Edge

Designed for bottom surface milling, achieving outstanding results with minimal tool wear while delivering higher precision and a smoother machined surface

Unmatched Corner Radius & Shank Precision

With a corner radius accuracy of ±0.002mm and an h4 shank tolerance for secure and stable tool holding.

NEW SIZES
Advanced Performance Four-Fluted Long Neck Corner Radius End Mill for Hardened Steels
A BRAND AE-CPR4-H
Carbide, Durorey Coating, 4-Flute, Metric Sizes
A BRAND AE-CPR4-H Main Image

4-Flute Design

Achieves high efficiency milling with a 4-flute configuration across all sizes in this list

New Spiral Gash

For Improved chip evacuation and suppression of chatter

Unequal Index

Suppresses chatter to enable high speed, deep reach milling

Unmatched Corner Radius & Shank Precision 

With a corner radius accuracy of ±0.002mm and an h4 shank tolerance for secure and stable tool holding. 

NEW SIZES
High Performance Coolant-Fed Carbide Drills for Ferrous and Non-Ferrous Materials
A BRAND ADO-40D & 50D
40 & 50xD, Coolant Thru, EgiAs coating
A BRAND ADO-40D & 50D Main Image

OSG's EgiAs Nano Coating Technology

Higher coating oxidation temp & hardness dramatically improve wear resistance

Wavy form cutting edge design

Sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing

Internal coolant holes

Coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds.

NEW
Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating
EXOCARB WXL-EBM
Carbide, 4 Flute, Ball End, Stub & Regular Length, Inch & Metric Sizes
EXOCARB WXL-EBM Main Image

Ultra-Fine Micro-grain Carbide

The hardest most wear resistant carbide possible for Incredible Wear Resistance.

High Precision Geometry

High accuracy all but eliminates need for benching and rework for mold makers.

High Strength Core Diameter

Tools utilize thicker core diameters for Ultimate Strength and Rigidity.

WXL coating

Higher coating oxidation temp & hardness dramatically improve wear resistance.

NEW
DLC Coated Carbide End Mill for Super Engineering Plastics
EXOCARB SEP-EL
Carbide, 2 & 3-Flute, Square End, DLC, Long Lengths
EXOCARB SEP-EL Main Image

DLC-IGUSS Coated

Combines microscopic tool sharpness & tool wear resistance while achieving a good surface finish in a range of plastics from engineering plastics to super engineering plastics.

3 Flute with low helix, Specialized for resins

Cutting tool design allows for low cutting forces, reduced heat generation, and burr free machining.

Strict dimensional control with tool diameter tolerances of 0.001" or better

High accuracy tooling designed for the demanding needs of the semiconductor industry.

Cutting edge ground to a point

Resulting in a sharp cutting edge for free machining in resins.

NEW

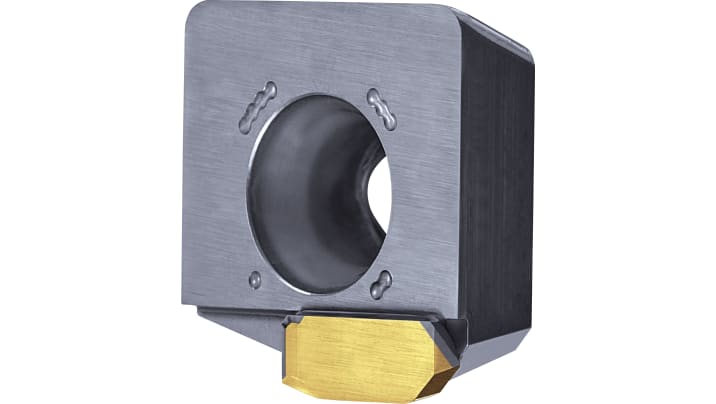

MCD Insert for Indexable PFDC Body
OSG PHOENIX PFDC INSERT
PFDC MCD Insert for non-ferrous metals and transparent resins
OSG PHOENIX PFDC INSERT Main Image

Monocrystalline Diamond

Mirror finish of non-ferrous metals and highly transparent resins.

Single cutting edge

Eliminates runout for excellent surface accuracy.

Large radius wiper blade

Enhances surface finish accuracy.
